Manage

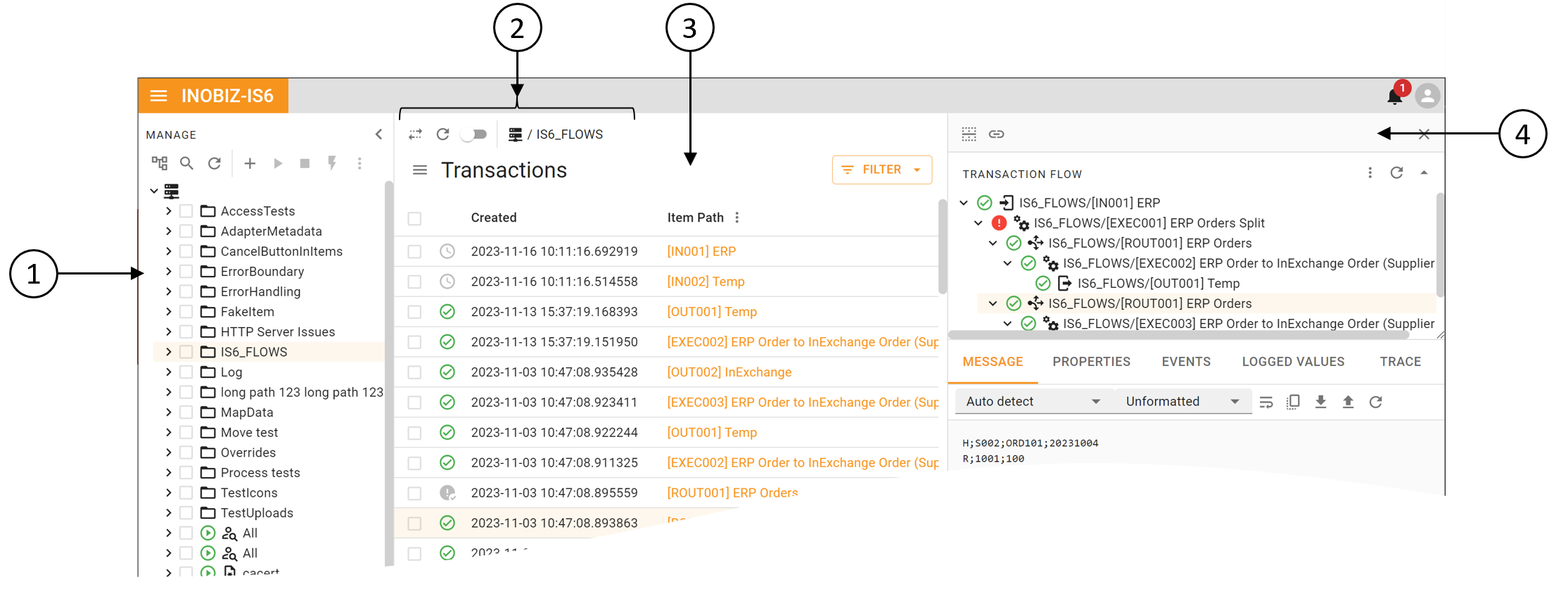

The Manage page is used to configure and monitor Integration Server.

1. Sidebar
2. Address bar
3. View
4. Transaction details

Sidebar

System tree

The system tree shows the structure of your Inobiz Integration Server configuration. The system tree contains folders, files and Inobiz items.

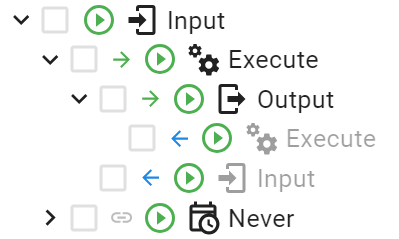

Inobiz items can be expanded to display related items. The expanded related items are called virtual nodes. Nodes that are not virtual nodes are called physical nodes. The virtual nodes have an extra icon that indicate the type of relation the item has with its parent.

The relation of a child to its parent can be one of three:

Downstream (green right arrow)	Data flows from parent to child
Upstream (blue left arrow)	Data flows from child to parent
Link (grey link)	A relation without data flow

A grayed out virtual node means that the same node already exists in the branch. This type of virtual node cannot be expanded to prevent infinite circular expansion.

Sidebar toolbar

1. Tree configuration
2. Find
3. Refresh
4. Create
5. Start
6. Stop
7. Run now
8. Menu

Tree configuration

The tree configuration menu can be used to select what inobiz items are visible in the tree. This only applies to physical nodes. When expanding an Inobiz item all related items will be visible.

Find

Search for a file, folder or item.

Create

Create a new file, folder or item. See article Manage - Create.

Start

Start the selected item(s). Enabled when all selected items are stopped.

Stop

Stop the selected item(s). Enabled when all selected items are started.

Run now

Run the selected item. Enabled when a single item that can be run is selected.

Menu

More item actions, e.g. Move, Rename, etc.

Address bar

1. Sync button
2. Refresh
3. Auto refresh
4. Current path

Sync button

Expand and scroll system tree to the current path

Refresh

Refresh current view

Auto refresh

When auto refresh in active the current view will automatically be refreshed every 10 seconds.

Current path

Current path. This could be a folder, item or file.

Views

Manage - Create

Manage - Transactions

Manage - Events

Manage - Edit

Manage - Queue messages

Manage - Process messages

Manage - Queue metrics

Manage - Process metrics

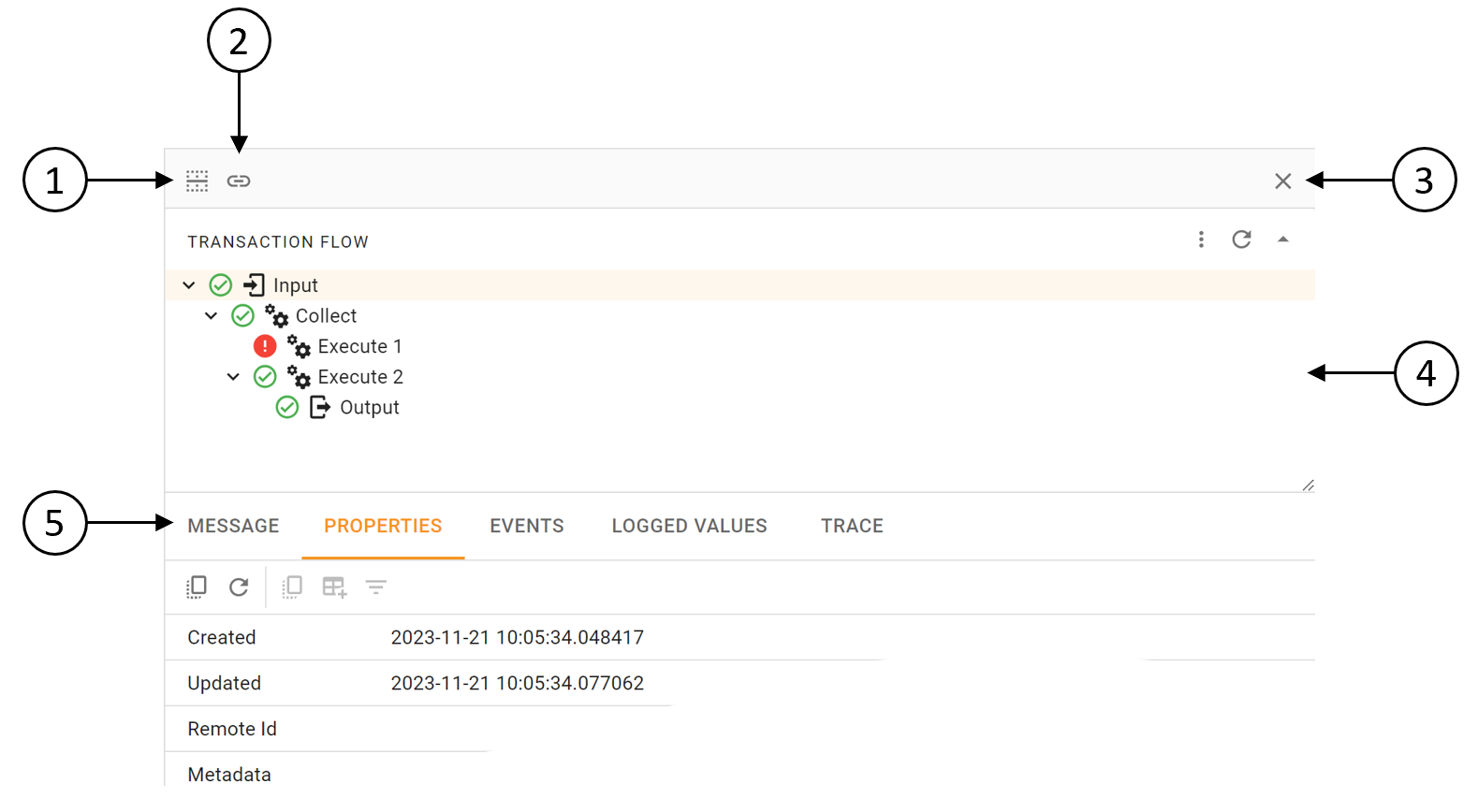

Transaction details

1. Switch layout
2. Copy transaction link
3. Close
4. Transaction flow
5. Tabs

Switch layout

The transaction details pane can be placed vertically or horizontally. The switch layout button switches between these layouts. The selected layout will be remembered when WISM is closed.

Copy transaction link

This button creates a link to the transaction and place the link in the clipboard. The link is a "lightweight" link as it will not load the system tree or any view.

Close

Close the transaction details pane. The transaction details pane can also be closed by pressing the esc button.

Transaction flow

The transaction with all its parent, siblings and children.

In the triple dot menu the transaction flow can be configured to display full path or only the item name.

Tabs

Message

Message content of the transaction. Encoding is auto detect by default and can be changed in the encoding drop down menu. WISM will remember the selected encoding when the transaction details pane is closed.

The message can be downloaded with the Download button. The message can be replaced by uploading a file with the Replace message button.

Properties

A property can be added as a column to the transaction view by selecting the property row and then click the Add column button. To remove a column select the property row and click the Remove column button.

A property can be added to the transaction view filter by selecting the property row and then click the Add to filter button.

The Add/Remove column and Add to filter buttons are enabled only in the transaction view.

Events

Transaction events.

Logged values

Logged values from the transaction.

A logged value can be added as a column to the transaction view by selecting the logged value row and then click the Add column button. To remove a column select the logged value row and click the Remove column button.

A logged value can be added to the transaction view filter by selecting the logged value row and then click the Add to filter button.

The Add/Remove column and Add to filter buttons are enabled only in the transaction view.

Trace

Transaction trace.
