Reference manual 7.2

Reference manual for the integration software CargoWise Connector 7.2 (CWC), including CargoWise Connector Setup (CWCS) and CargoWise Connector Manager (CWCM)

System requirements

1. Microsoft Windows Server 2019  version 1903 or newer.
2. Microsoft SQL Server/Express 2017 or newer.
3. .NET Framework 4.8
4. Setup

In order to setup your installation of CWC with CWCS you must have installed CWC from the Software Centre. Please see “CargoWise Connector 7 - Getting started”. It consists of several panels. Not all are enabled all the time. For example, the Upgrade panel is not enabled on a new installation.

Configure

Settings managed by CWCS need the CWC service to be restarted before they take effect.

Visualization

Setting	Description	Value	Example
Alias	The text label displayed in CWCM when connecting to this installation. The default alias is “CargoWise Connector”		Business Centre 1
Color	The color of the left side of CWCM. The default color is blue	Default Gray Green Orange Purple Red Yellow	Orange
Page size	How many rows from the log tables are gong be shown at a time in CWCM while paging		100

Interface

Settings for the API used by CargoWise Connector Manager (CWCM)

Setting	Description	Value	Example
Authentication	CWC provides basic HTTP authentication. Create (at least) one administrator user through CWCM before enabling this setting
Authorization	CWC provides access control in two different ways: 1/ What kind of operations a user can execute and 2/ By restricting access to certain parts of the content tree
Enable binding	To activate HTTP
Port	The port for HTTP		24780
Host	To what address the socket should be bound to		any
Enable binding (with SSL)	To activate HTTPS
Port	The port for HTTPS		24781
Host	To what address the socket should be bound to		any
Certificate	Server certificate file
Private key	Private key for server certificate file

Processing

Settings for the API used by any RunTime Worker Process (RTWP)

Setting	Description	Value	Example
Enable binding	To activate TCP
Port	The port for TCP		24680
Host	To what address the socket should be bound to		any
Enable binding (with SSL)	To activate TCPS TCPS is prioritized if enabled and then TCP is then obsolete
Port	The port for TCPS		24681
Host	To what address the socket should be bound to		any
Certificate	Server certificate file
Private key	Private key for server certificate file
Enable crash dump	Enables proprietary crash dumps (if an RTPW would crash) in favor of potential native operating system crash dumps

Database

Settings for the Log database.

Note that these settings only apply to transactions and logging done by CWC itself. Any SQL operations done by an Execute item (see below) use their own database settings.

Setting	Description	Value	Example
Enabled	When using CWC with HTTP Conversions only and no authorization is used, there’s no need to use a database
Connection string	The ODBC connection string used by CWC to for the log database used		DSN=MyTransactions
Command timeout	If not set, the drivers default timeout is used
Max concurrent operations	Certain DBMS installations might have some limitations in their license. This options limits CWC’s concurrent operations to the log database.
Max number of attempts	Maximum number of attempts to execute an operation to handle temporary glitches. If an attempt fails, the connection is dropped and another connection, possible new, is used for upcoming attempts.

Folders

Here we can configure the directories that CWC uses for different requirements.

Setting	Description	Value	Example
Archive	Where backup files are moved to and bulk files are stored during archiving (see below)
Content	Where the items users can configure via CWCM (and other files) are placed
Deposit	Where all files (such as temporary downloaded files (.dat) and sequence number files (.num)) created by CWC during processing
Dumping	Where all potential RTWP crash dumps (if enabled) ends up
Licence	Where CWC looks for the license files
Logging	Where trace files are stored.
Message	Where all the message backup files stored (until archived)
Recycle	The root folder for removed items
Session	Where the server session log files are stored
Storage	Where all holder content is unpacked, stored and used during server session.

Events

Setting	Description	Value	Example
Enable	Logging of events to database. If Match is selected, all user events will be logged even without match.	None Match All
Flush intervals seconds idle	Seconds to wait to flush (send) events after the last event arrived.
Flush interval seconds total	Seconds to wait to flush (send) events since the first event arrived.
Flush records threshold	Maximum events to keep before flush (send) occurs.

Archiving

Setting	Description	Value	Example
Enabled	If just HTTP Conversions are used, there is no reason to have the archive mechanism enabled.
Archive older than	Transactions and Events are removed from the log database (and backup files are moved) if they’re older than this threshold.
States to dispose	Log transactions and related backup files with selected states will get culled (and not archived)	Completed Discarded Error Aborted Cleared

HTTP Listener

Setting	Description	Value	Example
Enabled	If HTTP Conversions are used, the listener mechanism needs to be enabled

Install

This panel allows for creation of various artifacts (and not installation of binaries) needed by CWC as a second part of the overall installation process.

Create database

For most use cases of CWC, a database is required (but not all). When the configuration for the database is chosen, press the Create button to create the database.

Connection string

The ODBC connection string used during the creation phase of the log database. Unless the override option is enabled, this uses the same connection string as specified in the Configure panel.

Create SQL login for default service account

If this option is enabled, the create database command will create a SQL login for the default service account (see Create service) and grant that login access to the log database.

Setup database

Creates the log database tables as a separate step (from creating database) for flexibility. Press the Create to create the database contents.

Connection string

The ODBC connection string used during the creation phase of the log database tables. Unless the override option is enabled, this uses the same connection string as specified in the Configure panel.

Create service

Creates a Windows service entry for CWC (but it is possible to run CWC in other ways). The service is configured to run as the local system account.

Create default items

For most use cases with CWC it is easier to install a few predefined items (they can be updated and/or removed later in CWCM).

Upgrade

This upgrades content, settings and possible database design to the latest version. Just as with Install, it will either use the database connection specified on the Configure panel, or an overridden one.

Diagnostics

This page in CWCS contains information useful for troubleshooting.

Server log

The system uses a file based session log to write technical information and some errors and CWCS shows the content of the most current log file.

Items

Every configurable business unit is called an item. There are four primary kinds of items that provides immediate business value; adapters, routings, executes and scheduled tasks. The others handle facilities such as load balancing, scheduling, monitoring, archiving, etc.

Messages and message passing are all file based internally, including backup and archiving.

Business steps and flows

Each item that provides an immediate business value is called a step and several steps in a sequence is called a flow.

All executed steps are logged as transactions.

Each step may have multiple targets.

Adapters

Pattern expansion

Theres a mechanism called expand pattern that can be addressed in some adapter settings.

Value	Description
%%	Escape %
%n	Sequence number
%d	Date CCYYMMDD
%u	Date YYMMDD
%t	Time hhmmss
%h	Hour hh
%d	Minute mm
%s	Second ss
%y	Year CCYY
%Y	Year YY
%M	Month MM
%D	Day DD
%g	A GUID
%i	Transaction Id
%r	RemoteId

Macro expansion

For (typically) out adapters, each protocol setting could contain the <MACRO> keyword that will be expanded with possible incoming macro data. The macro data may be set with an Execute process or mapping on a step and to be updated throughout the whole flow as the argv[9] variable. If macro data can be split into several separate values with the syntax of <MACRO([index], “[separator expression]”> with index from 1 and separator expression as a regex.

This can be tested in the Review action in CWCM.

Consider macro data value of “v1;v2;v3"”

Setting	Result
AAA <MACRO> AAA	AAA v1;v2;v3 AAA
BBB <MACRO(2,";")> BBB	BBB v2 BBB

Common settings

Adapters are how data comes into and leave CWC and all support these common settings.

Setting	Description	Value	Example
Schedule	Schedule for schedule driven adapters (in contrast to event driven)
Targets	Items targeted with the message for further processing in the flow
Override	Settings for overriding adapter specific settings
Event policy	The Event Policy used for possible events occurring during processing of messages
Backup policy	The Backup Policy used for backing files created whilst processing messages
Run exclusive	Whether this adapter should do its processing in an exclusive operating system process
Retries	Number of retries for each message if a problem occurs
Interval	The duration between the retries

Input

Input adapters receives or retrieves messages and forwards them to its targets in the business flow. The adapter could be event based (triggered by the message itself) or scheduled based (triggered by a Schedule).

Folder

Scans one single local or remote folder for files.

Setting	Description	Value	Example
Folder path	Absolute path to local folder or relative path to remote share		c:\import\ \import\
File mask	File mask		*.xml
Remote	Remote resource name		\\server\files
Domain	Domain name of the remote resource
Username	Username for authentication at remote location
Password	Password for authentication at remote location
Keep remote file	Do not delete file after retrieval

FTP Client

Monitors a single folder on an FTP server for files.

Setting	Description	Value	Example
Host	Server host address
Port	Server port		21
Username	Username
Password	Password
Account	Account data sent with ACCT command
Path	Path to search for files		/export/orders
File mask	File mask		*.json
Mode	FTP mode	EPSV Passive using EPSV command PASV Passive using PASV command EPRT Active using EPRT command PORT Active using PORT command
Certificate	SSL client certificate
Private key	Private key for client certificate
Private key password	Passphrase to private key
Verify certificate host	Verify the certificate's name against host
Verify peer certificate	Verify the client SSL certificate
Use SSL	Use explicit FTPS. Implicit FTPS is not supported. Max TLS 1.2
Keep remote file	Do not delete file after download
ANSI file listing	Treat server paths as ANSI-encoded
Ignore list error	Do not create an error event if the file listing fails
Disconnect after each command	Disconnect from server after each command
Proxy type	Type of proxy	No Proxy ProxySocks4 ProxySocks5 ProxySocks4A ProxySocks5 Hostname SSL HTTP 1.0 HTTP
Proxy host	Proxy host address
Proxy port	Proxy host port
Proxy username	Proxy username
Proxy password	Proxy password

SFTP Client

Monitors a single folder on an SFTP server for files.

Setting	Description	Value	Example
Host	Server host address
Port	Server port		21
Username	Username
Password	Password
Path	Path to search for files		/export/orders
File mask	File mask		*.json
Known hosts	Reference to a txt holder containing a known hosts list
Private key	Private key file for SSH auth
Private key password	Passphrase to private key
Keep remote file	Do not delete file after download
ANSI file listing	Treat server paths as ANSI-encoded
Ignore list error	Do not create an error event if the file listing fails
Disconnect after each command	Disconnect from server after each command
Proxy type	Type of proxy	No Proxy ProxySocks4 ProxySocks5 ProxySocks4A ProxySocks5 Hostname SSL HTTP 1.0 HTTP
Proxy host	Proxy host address
Proxy port	Proxy host port
Proxy username	Proxy username
Proxy password	Proxy password

Email

Pull messages from an POP3 email server

Setting	Description	Value	Example
Host	Server host address
Port	Server port		110
SSL	SSL mode	None Implicit Explicit
Username	Username
Password	Password
Sender filters	Receive only email(s) whose address matches one of a given list. Leave blank to receive all emails.		[e-mail] [e-mail]
Subject filter	Receive only email(s) whose subject contains the given substring. Leave blank to ignore subject matching.		info
Message placement	What part of the email to use as message content	Body Attachment Body+Attachment
Binary attachment	If the attachment is binary use this option.
Security Token Type	OAuth2 Security Token Type	None OAuth2 Client Credentials – Client Secret OAuth2 Client Credentials – Client Assertion
Authorization URL	OAuth2 Authorization URL
Client Id	OAuth2 Client Id
Scope	OAuth2 Scope
Client secret	OAuth2 Client secret Available when using OAuth2 Client Credentials – Client Secret
Certificate	OAuth2 Client certificate Available when using OAuth2 Client Credentials – Client Assertion
Private key	OAuth2 Client certificate private key Available when using OAuth2 Client Credentials – Client Assertion

HTTP Client

Retrieve messages from an HTTP or HTTPS server.

Setting	Description	Value	Example
Scheme	Use SSL or not	http:// https://
Host	HTTP server host		edi.customer.com
Port	HTTP server port		443
Path	Path		/export
HTTP Method	HTTP method	GET PUT POST PATCH DELETE
Headers	List of headers to add to the request	See section about expanding patterns	Accept: application/json
Message	Static content to add to the request
Message placement	Where content of the Message setting is placed in the request	Body Multipart Query
Response identification header	Content from this response header will be logged as transaction  RemoteId		OrderNumber
Response code whitelist	Transaction is successful if the http response code matches any entry in the whitelist. The entries are matched with regex		2[0-9]{2} 200|401
Certificate authority bundle	Certificate Authority (CA) bundle
Certificate	SSL client certificate Could be a PEM or a DER holder
Private key	Private key file for SSL client cert Could be a PEM or a DER holder
Private key password	Passphrase to private key
Verify certificate host	Verify the certificate's name against host
Verify peer certificate	Verify the client SSL certificate
Username	Username using basic authentication
Password	Password using basic authentication
Proxy type	Proxy type
Proxy host	Proxy host
Proxy port	Proxy port
Proxy username	Proxy username
Proxy password	Proxy password
Response timeout	Maximum time the transfer is allowed to complete
Security Token Type	Security Token Type	None OAuth2 Client Credentials – Client Secret OAuth2 Client Credentials – Client Assertion
Security Token Type	OAuth2 Security Token Type	None OAuth2 Client Credentials – Client Secret OAuth2 Client Credentials – Client Assertion
Authorization URL	OAuth2 Authorization URL
Client Id	OAuth2 Client Id
Scope	OAuth2 Scope
Client secret	OAuth2 Client secret Available when using OAuth2 Client Credentials – Client Secret
Certificate	OAuth2 Client certificate Available when using OAuth2 Client Credentials – Client Assertion
Private key	OAuth2 Client certificate private key Available when using OAuth2 Client Credentials – Client Assertion

HTTP Server

Create an HTTP server and create messages from HTTP calls.

Setting	Description	Value	Example
Scheme	Use SSL or not	http:// https://
Host	Interface to listen on		localhost 127.0.0.1 192.168.1.100
Port	Port to listen on
Path	Request path to listen on		/import
HTTP methods	Accept these HTTP methods	GET PUT POST PATCH DELETE
Header filters	Accept requests only when request headers match this filter	See section about expanding patterns
Request identification header	Content from this request header will be logged as transaction RemoteId
Message relation	Response strategy	Datagram Immediate status 200  response Reply Request Wait for a response from an HTTP Server Out Adapter
Response headers	List of headers to add to the response	See section about expanding patterns
Certificate	Server certificate
Private key	Private key for server certificate
Username	Only accept requests with these basic authentication credentials
Password	Only accept requests with these basic authentication credentials

IBM MQ

Pull messages from a queue.

Setting	Description	Value	Example
Manager	Manager
Channel	Channel (for remote server)
Host	Host (for remote server)
Queue	Queue name
Message filter	Message filter
Correlation filter	Correlation filter

MS MQ

Pull messages from a queue.

Setting	Description	Value	Example
Queue path	Queue path
Queue format	Queue format

Custom

Use an EDI-C script built with CargoWise Mapper from a provided template to create / retrieve messages.

Setting	Description	Value	Example
Cep holder	Cep holder
Arguments	Arguments to the EDI-C script

Output

Output adapters handle messages that have been forwarded by another item in the business flow. The adapter could be event based (triggered by the message itself) or scheduled based (triggered by a Schedule).

Folder

Places messages in a local or remote folder

Setting	Description	Value	Example
Folder path	Absolute path to local folder or relative path to remote share	See section about expanding patterns	c:\export\%g.edi \export\%d\%g.edi
Create missing directory	Try to create the target folder if it does not exist
Append	Append the message to existing file
Remote	Remote resource name		\\server\files
Domain	Domain name of the remote resource
Username	Username for authentication at remote location
Password	Password for authentication at remote location

Email

Push message to an email server

Setting	Description	Value	Example
Host	Server host address
Port	Server port
SSL	SSL mode	None Implicit Explicit
Username	Username
Password	Password
Sender	Which address the email(s) are sending from.
Recipients	List of address the email is sent to.		[e-mail] [e-mail]
Subject	The subject of the email.
Message placement	Where message is placed	Body Multi-Attachment
Encoding	Transfer encoding	quoted-printable 7bit 8bit base64 binary
File name pattern	File name of attachment	See section about expanding patterns
MIME	MIME headers to add to the email
Security Token Type	Security Token Type	None OAuth2 Client Credentials – Client Secret OAuth2 Client Credentials – Client Assertion
Authorization URL	Authorization URL
Client Id	Client Id
Scope	Scope
Client secret	Client secret Available when using OAuth2 Client Credentials – Client Secret
Certificate	Client certificate Available when using OAuth2 Client Credentials – Client Assertion
Private key	Client certificate private key Available when using OAuth2 Client Credentials – Client Assertion

FTP Client

Push messages to an FTP server

Setting	Description	Value	Example
Host	Server host address
Port	Server host port
Username	Username
Password	Password
Account	Account data sent with ACCT command
Upload path	Path to uploaded message both folder and filename	See section about expanding patterns	/incoming/%g.edi
Use SSL	Use explicit FTPS. Implicit FTPS is not supported. Max TLS 1.2
Create missing directory	If upload folder does not exist, try to create it
ANSI file listing	Treat server paths as ANSI-encoded
Append	Append to the remote file
Move to path	After successful upload move the uploaded file to this path (absolute or relative to the folder in Upload path)	See section about expanding patterns
Mode	FTP Mode	EPSV Passive using EPSV command PASV Passive using PASV command EPRT Active using EPRT command PORT Active using PORT command
Certificate	SSL client certificate
Private key	Private key for client certificate
Private key password	Passphrase to private key
Verify certificate host	Verify the certificate's name against host
Verify peer certificate	Verify the client SSL certificate
Disconnect after each command	Disconnect from server after each command
Proxy type	Proxy type	No Proxy ProxySocks4 ProxySocks5 ProxySocks4A ProxySocks5 Hostname SSL HTTP 1.0 HTTP
Proxy host	Proxy host
Proxy port	Proxy port
Proxy username	Proxy username
Proxy password	Proxy password

SFTP Client

Push messages to an SFTP server

Setting	Description	Value	Example
Host	Server host address
Port	Server host port
Username	Username
Password	Password
Upload path	Path to uploaded message both folder and filename	See section about expanding patterns	/incoming/%g.edi
Create missing directory	If upload folder does not exist, try to create it
ANSI file listing	Treat server paths as ANSI-encoded
Append	Append to the remote file
Move to path	After successful upload move the uploaded file to this path (absolute or relative to the folder in Upload path)	See section about expanding patterns
Known hosts	Reference to a txt holder containing a known hosts list
Private key	Private key file for SSH auth
Private key password	Passphrase to private key
Disconnect after each command	Disconnect from server after each command
Proxy type	Proxy type	No Proxy ProxySocks4 ProxySocks5 ProxySocks4A ProxySocks5 Hostname SSL HTTP 1.0 HTTP
Proxy host	Proxy host
Proxy port	Proxy port
Proxy username	Proxy username
Proxy password	Proxy password

HTTP Client

Push messages to an http server

Setting	Description	Value	Example
Scheme	Use SSL or not	http:// https://
Host	HTTP server host		edi.customer.com
Port	HTTP server port		443
Path	Path		/import
HTTP method	HTTP method	GET PUT POST PATCH DELETE
Headers	List of headers to add to the request	See section about expanding patterns
Message placement	Where in the request to place the content of the message	Body Multipart Query
Response identification header	Content from this response header will be logged as transaction RemoteId
Response code whitelist	Transaction is successful if the http response code matches any entry in the whitelist. The entries are regexp		2[0-9]{2} 200|401
Certificate authority bundle	Certificate Authority (CA) bundle
Certificate	SSL client certificate Could be a PEM or a DER holder
Private key	Private key file for SSL client cert Could be a PEM or a DER holder
Private key pasword	Passphrase to private key
Verify certificate host	Verify the certificate's name against host
Verify peer certificate	Verify the client SSL certificate
Username	Username using basic authentication
Password	Password using basic authentication
Proxy type	Proxy type
Proxy host	Proxy host
Proxy port	Proxy port
Proxy username	Proxy username
Proxy password	Proxy password
Response timeout	Maximum time the transfer is allowed to complete
Security Token Type	Security Token Type	None OAuth2 Client Credentials – Client Secret OAuth2 Client Credentials – Client Assertion
Authorization URL	Authorization URL
Client Id	Client Id
Scope	Scope
Client secret	Client secret Available when using OAuth2 Client Credentials – Client Secret
Certificate	Client certificate Available when using OAuth2 Client Credentials – Client Assertion
Private key	Client certificate private key Available when using OAuth2 Client Credentials – Client Assertion

HTTP Server

Push message as a response to an HTTP Server Input Adapter using message relation request.

Setting	Description	Value	Example
Response code	Static response code used in response to request		200
Headers	List of headers to add to the response	See section about expanding patterns	Name: Value

IBM MQ

Push messages to a queue.

Setting	Description	Value	Example
Manager	Manager
Channel	Channel (for remote server)
Host	Host (for remote server)
Queue	Queue
Reply manager	Reply manager property on MQ message
Reply queue	Reply queue property on MQ message

MS MQ

Push messages to a queue.

Setting	Description	Value	Example
Queue path	Queue path
Create queue	Create queue
Queue label	Queue label
Queue format	Queue format
Max message size	Max message size
Transaction queue	Transaction queue

Custom

Push message using an EDI-C script

Setting	Description	Value	Example
Cep holder	Cep holder
Arguments	Arguments to the EDI-C script

Processing

If the business flow requires some kind of transformation between their endpoints, a processing item can be inserted wherever suitable.

Setting	Description	Value	Example
Schedule	The schedule for schedule-driven processing (in contrast to event driven)		Every 5 minutes.
Event policy	The policy used for possible events occurring during processing messages
Backup policy	The policy used for backup files created during processing messages
Process group	The group this item belongs to
Instances	The maximum of instances of this item that can be run in parallel Set to one (1) instance ensures serialized processing
Timeout	Timeout for processing a message before processing is terminated
Runtime version	The EDI-C runtime version Only 64-bit runtimes is supported		default
Trace	Enables trace creation while running any EDI-C program or mapping.

Execute

An execute item provides (of historical reasons) two ways of manipulating a message in this step.

An execute step map consist of either:

A manually written EDI-C program to manipulate the message, extract data from the message or do any other suitable operations that is possible through EDI-C. You can make these from a Process template in CargoWise Mapper.

An EDI-C mapping program generated by a graphical map in CargoWise Mapper.

Setting	Description	Value	Example
Process	EDI-C script
Mapping	EDI-C mapping
Targets	Items targeted with the message for further processing in the flow

Routing

The system provides a mean to make a decision to where in the flow a message should continue.

The routing is done by a separate item that refers to execute items that make the decision to what execute steps will follow.

Technically (for historical reasons) the routing item and the execute items are executed as one single roundtrip, but are logically two or more steps.

Setting	Description	Value	Example
Target
Min route hits
Max route hits

Scheduled Task

A scheduled task is the only business item that doesn’t handle any message and is normally triggered by a schedule (but can technically be triggered by another step or manually) and is just a means to execute a given EDI-C script.

Setting	Description	Value	Example
Cep holder

Tuning

Some parts of the business flow can be somehow tuned in order to facilitate CPU in various ways.

Separate process

There’s a setting for adapters to force them to execute in a separate process that can improve throughput a bit, but also uses more processes.

Process groups

Items for routing, executes and tasks are always executed in a separate process one step at a time.

The system can have several process groups and each group can be configured with max number of pipelines (processes) it uses and such process can only process one step at a time.

To increase the number of pipelines in a process group, give items belonging to that group extra attention by the system and possibly faster throughput.

Process Group

Setting	Description	Value	Example
Pipelines	The number of threads/processes this group at the most can utilize

Instances

All adapters run in a separate single instance and there are no race conditions there.

Items running in a process group can within that group be configured with maximum number of instances for a step running instances in parallel that can be used for quite low level fine tuning within that group.

This feature can be used to make a certain step only run at maximum one (1) instance (serial) at a time that sometimes can be useful to maintain ordering of messages or such.

This applies to Executes, Routings and Scheduled Tasks.

Holders

These holders contain data that can be referenced for use with CWC. This allows them to be moved around the system while still maintaining relationships between items..

Data is copied from the data part in the holder during creation or updating and placed in the Storage-folder named with item id and file extension and can thus potentially also be used by mappings and processes.

New data can be copied into the holder, updating the system if needed, e.g. when a mapping has been changed, or a certificate needs updating.

Cep Holder

Setting	Description	Value	Example
Cep File	The data Base64 encoded into holder and decoded to storage

Pem Holder

Setting	Description	Value	Example
Pem File	The data Bytes copied into holder and copied to storage (already a Base64 format)

Der Holder

Setting	Description	Value	Example
Der File	The data Base64 encoded into holder and decoded to storage

Txt Holder

Setting	Description	Value	Example
Txt File	The data/text UTF8 encoded into holder and copied to storage

Triggering

Message

Some flows can be automatically triggered by an incoming message, such as folder input adapter, http server adapters, etc.

Schedule

The system contains an item type for trigger flows via schedules. The schedule defines when items that refer to it will be triggered.

While you can configure a schedule with intervals, and periods when it is active, it does not enable or disable associated items, just initiates them.

A single schedule can contain multiple entries.

Setting	Description	Value	Example
Interval	The time duration between every triggering
Start date	Absolute (future) start		2027-04-01
Stop date	Absolute (future) stop		2032-12-24
Start time	Start of activity for each day This setting may also work as an offset for the interval duration (e.g. hourly from 09:15)		00:00:07
Stop time	End of activity for each day		18:00:00
Include months	Which months this entry should be active		1, 4, 7, 10
Include weeks of year	Which weeks (ISO-8601) this entry should be active		42
Include days of month	Which days this entry should be active		1, 2, 3, 4, 5, 6, 7
Include days of week	Which days this entry should be active		Monday

Manual

Some items can be triggered manually (or “Run Now”). When that’s done, they will be triggered without an incoming message (i.e. a backup file). If there’s already at least one message in the queue, triggering a new one won’t have any effect.

Triggering output adapters (historically) works in a slightly different manner and is more or less making the adapter consume its queue.

Reporting

Events

The system and items can all publish events. These events can be caught by event policy items which can be configured to write the events to database or forward it to a target item (e.g. an email output adapter).

Each policy can be shared with many items, but each item can only be associated with one event policy.

Event Policy

Setting	Description	Value	Example
Mask	The expression to invoke this policy comparing event types		:error
Expression type	Contains is substring to find Search is regex to find sub sequence of event type Match is regex check for whole event policy type	Contains Search Match
Notes	Text possibly ending up in produced notification
Targets	Target items to forward the event notification caught by this policy

Monitoring

Most of the monitoring items can also be configured to publish events that can be caught by an event policy.

System

Queue Metric

There’s an item to be used to monitor all, or certain, queues to see message count and throughput.

Setting	Description	Value	Example
Folders	List of folders (and its subfolders) to monitor. If no folders are present the metric item monitors the folder (and subfolder) where it is placed.		Orders/ Payments/
Schedule	The Schedule used for updating the metrics. Without a schedule it will only become updated with manual triggering.
Event policy	The Event Policy used for creating events if the result is out of range.
Max	Max number of total messages on queues this item monitors.		1000

Pipelines

Process Metric

This is used to monitor all, or certain, pipelines for a process group to see use count and throughput.

Setting	Description	Value	Example
Folders	List of folders (and its subfolders) to monitor If no folders is present the metric item monitors the folder (and subfolder) where it is places		Orders/ Payments/
Schedule	The Schedule used for updating the metrics Without a schedule it will only become updated with manual triggering
Event policy	The Event Policy used for creating events if result is out of range
Max	Max number of total busy pipelines this item monitors		100

Business

There are items to monitor the log tables in the database. These essentially do searches and count rows etc. with Search Event and Search Transaction.

The same mechanism can be used to search for server sessions and also content in server log files with Search Server Session.

Configuration

There are a few items just to reuse settings between other items.

Backup

The system constantly archives backup files.

Backup Policy

This item with can be reused by items to configure some of the behavior with backup files.

Setting	Description	Value	Example
Backup folder	Path to folder that will override backup folder set in CWCS		D:\Special\Folder
Keep file	Duration until deletion/culling of backup file		30

Settings

It is possible to override and reuse certain settings for adapters and execute items (i.e. items that handles a message).

Settings

This can contain specific settings for adapters and executes  and that can be reused to override the adapter – or execute specific settings and an item can refer to many of these override setting items.

Setting	Description	Value	Example

Overview

There are a few mechanisms to group items to reflect some kind of business need and to make an overview of the system easier, such as using the tree structure, add tags to items, add documentation or use a collection.

Collection

This item has a sole purpose to group items and give them a common description.

Setting	Description	Value	Example
Items	Items belonging to this collection

HTTP Conversions

These offer a means to execute EDI-C mapping scripts through an HTTP interface that is a standalone mechanism without logging and event handling. If Connector is only used to run HTTP Conversions, it does not need any logging database configured.

HTTP Listener

This item pretty much represents a http server.

Setting	Description	Value	Example
Host	To what address the socket should be bound to		any
Port	What port to listen to		80
Use SSL
Certificate
Key

HTTP Conversion

This item serves as a resource to the http server defined by the referenced Listener.

Setting	Description	Value	Example
Listener	Which listener a conversion uses
HTTP Methods			GET, POST
Path			/orders/transform
Program	The holder with the EDI-C script
Authentication
Username
Password

Manager

The CargoWise Connector Manager (CWCM) can be accessed via a web browser after the CargoWise Connector service has been started. The default URL is http://[server_ip_or_name]:24780/.

To access CWCM you need a modern web browser.

When browsing CWCM the browser URL will reflect your current view. That means you can share the URL with colleagues to link to a specific view, item and transaction. Or use it in a new tab.

CWCM should only be exposed to your local network.

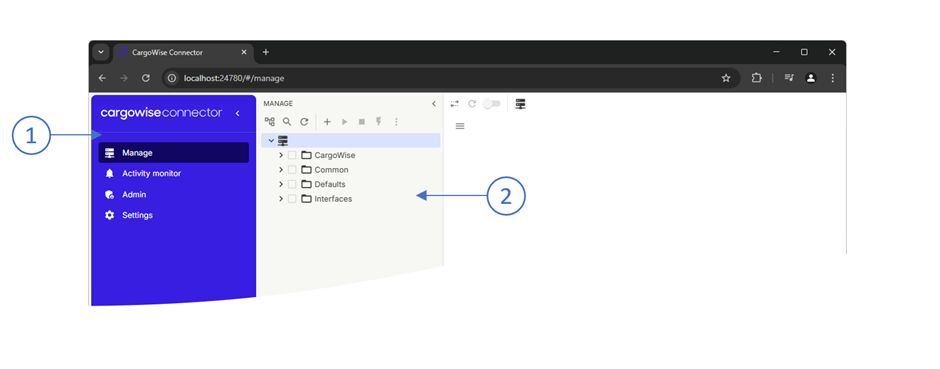

Layout

1. Main menu

   2. Side bar – content of the side bar depends on the current page.

Main menu

The main menu lets you choose the active page.

On the bottom of the menu you can find the server alias and the server version. Ther server alias can be configured in the CargoWise Connector Setup application.

The main menu can be collapsed and expanded by clicking the collapse/expand button in the upper right corner of the menu.

Pages

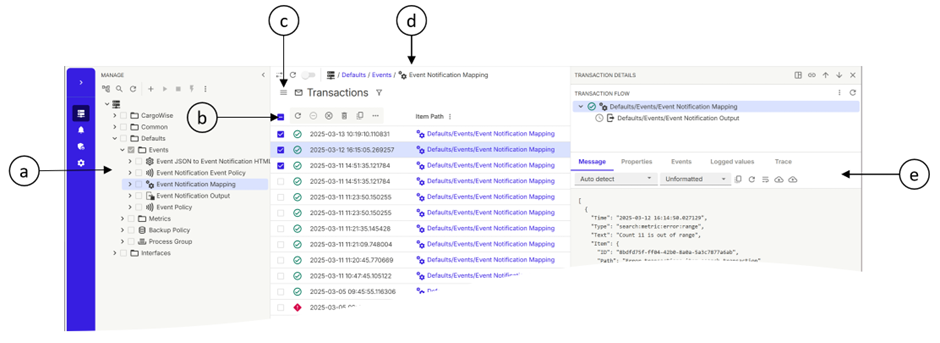

Manage

The manage page lets you configure and monitor your business flows.

a) System tree

b) List item action menu

c) View selection menu

d) Address bar

e)Transaction details

System tree

The system tree shows the structure of your server. It can show relationship between items and perform actions on items, folders and files.

When an item is expanded related items are displayed. Items related in a flow are indicated with a direction.

The system tree can be configured to show only a sub set of item types via the Tree configuration button/menu.

To search for artifacts use the Find button, or press f on the keyboard, to bring up the find form. Search by name, type and/or tags.

Actions

Action	Description	Affected artifacts
Start	Starts the selected items	1..n
Stop	Stops the selected items	1..n
Run now	Trigger the selected item	1
Rename	Rename the selected artifact	1
Move	Move the selected artifacts to a another path	1..n
Clone	Clone the selected item	1
Replace with	Replace the selected item with another item in all business flows where it is currently used.	1
Download	Download the configuration for the selected item	1
Update	Update the selected item configuration with a configuration file from your local file system.	1
Insert message	Insert a message into the queue of the selected item	1
Move to recycle bin	Move the selected artifacts to the recycle bin. This is the default behavior when pressing the delete key.	1..n
Delete	Completely remove the selected artifacts.	1..n
Use as root	Use the selected folder as root in the system tree.	1
Set sequence number	Set the sequence number (%n pattern expansion) for the selected item	1
Load from disk	Loads the selected items into the server.	1..n
Drop from server	Unloads the selected items from the server.	1..n

Available actions might depend on the selected artifacts.

List item action menu

When rows in a list are selected and actions are available the list item action menu become visible.

Address bar

The address bar shows the path to the current artifact.

View selection menu

Select view. Depending on the current artifact type some views might not be available.

View

The view displays various information about the current artifact. View type is selected in the View selection menu.

Transaction details

The transaction details pane shows information about a transaction.

The transaction flow shows parent, sibling and child transactions.

The detail tabs show information about the transaction selected in transaction flow.

Layout of the pane can be changed via the layout button.

Close the pane with the close button or by pressing esc.

Filtering and searches

Note that when using “Within last …” a year actually means approximately 365.25 days and a month is approximately 30.5 days.

Create

Besides items these can be created:

Type	Description
Folder	A folder where items, files and subfolders can be placed
File	A file, e.g. ini/json/xml etc
NUM-file	A num-file with an initial value

Views

Transactions

View transactions for the selected item or folder with subfolders. Click a transaction row to open the transaction details pane.

Transactions can be filtered using the filter function.

Transaction actions can be applied to transactions.

Actions

Action	Description
Reprocess	Reprocess the selected transactions
Abort	Abort the selected transactions
Delete	Delete selected transactions and optionally the children
Copy to clipboard	Copy the selected transaction rows with all columns with tab separation to the clipboard.
Set state	Set state of transactions and add an optional comment.
Add comment	Add a comment to the selected transactions.
Clone	Clone the selected transaction and add an optional event. The cloned transaction will keep the parent but have no children.
Delete trace	Delete trace file for the selected transactions

Events

View events for the selected item or folder with subfolders.

The events can be filtered using the filter function.

Actions

Action	Description
Copy to clipboard	Copy the selected events with all columns with tab separation to the clipboard

Edit

Edit configuration details for an item or content of a file. Edit view for a folder displays a detailed list of artefacts in the folder.

Queue messages

View messages in an item queue. The corresponding transaction can be opened by clicking the message row.

Actions

Action	Description
Abort	Abort the transaction

Runtime details

View runtime details for process group and adapters. When a pipeline or adapter is executing the corresponding transaction can be opened by clicking the process row.

Actions

Action	Description
Abort message	Abort the processing transaction
Terminate processing	Terminate the processing transaction. The option Verify still processing current message makes sure that termination will only occur for the specified message.

Queue metrics

Show queue metrics for items in folder and subfolders. Click on an item row to open Queue messages for that item.

Process metrics

Show process metrics for process groups in folder and subfolders.

Recycle bin

Show items placed in the recycle bin.

Actions

Action	Description
Restore	Restore the selected items to their original path. Items will be restored in stopped state.
Delete	Delete the selected items. This cannot be undone.

Activity monitor

By using a combination of search and metric items, tags and schedule the activity monitor can show notifications when configured criteria are met.

Admin

Server sessions

View server session log. Server sessions can be filtered using the filter function.

Server metrics

Various metrics.

Users and groups

Manage users and groups.

Access

Set access rules for folders. For access rules to be applied authentication and authorization must be enabled in the server.

Server information

License information. Usage of licensed resources.

Settings

User settings

Change settings for the current user.

Setting	Description
Dark mode	Toggle dark mode

Change password

Change password for the current user.
